AMADA VIPROS 358

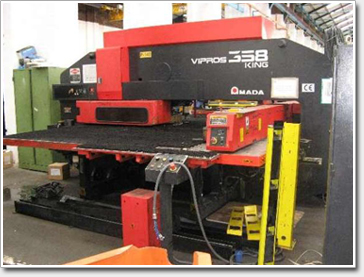

PHOTOGRAPH TAKEN ON SITE BEFORE MACHINE HAS RECEIVED ANY ATTENTION



AMADA VIPROS 358 KING 30 TON (30,480 KGS), 58 STATION ,4 AUTO INDEX UNIT CNC PUNCH
Year of Manufacture 1995
Control 04 PC
Material thickness ¼" (6MM)
Hole size 4½" (115MM)
Sheet size 50" X 78.3/4" (1270MM X 2000MM) OR 50" X 157½
(1270MM X 4001MM) WITH REPOSITIONS
Sheet weight 110 LBS
Ram stroke 1½" (38.4MM)
X axis travel 78.3/4" (2000MM)
Y axis travel 50" (1270MM)
Speeds 460 HPM @ 1" (25.4) CENTRES
Input 415/3/50 AC
Fitted with PNEUMATIC TOOL LOAD, BRUSH TABLES AND INFRA-RED GUARDS
Nett weight approx. 16 TON (16,256 KGS)




Model AMADA PEGA 357
Model Amada Aries 245
Model AMADA VIPROS 358






Turret Punching Machine   Turret Punching Machine   CNC Laser Cutting Machine   Press Break
